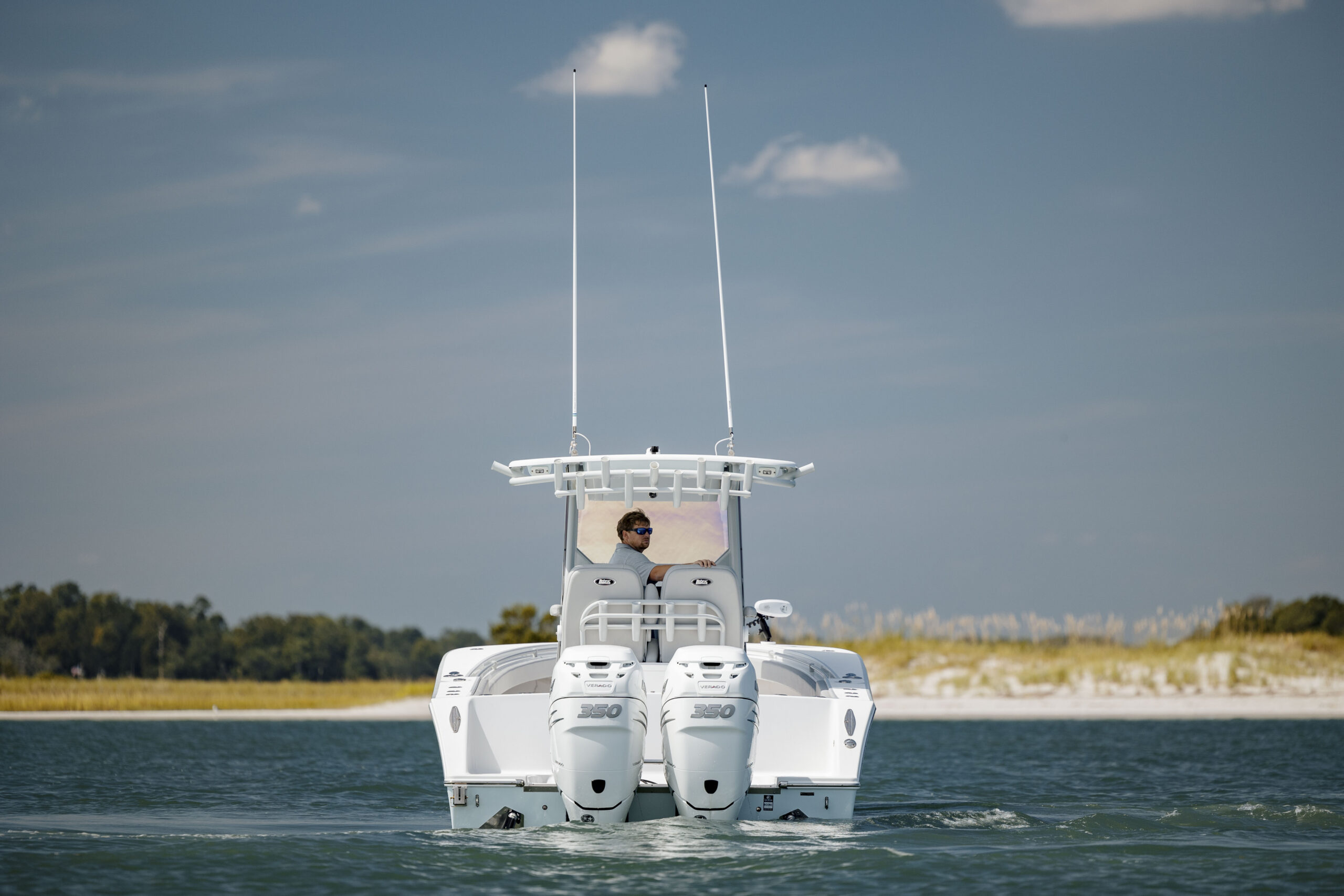

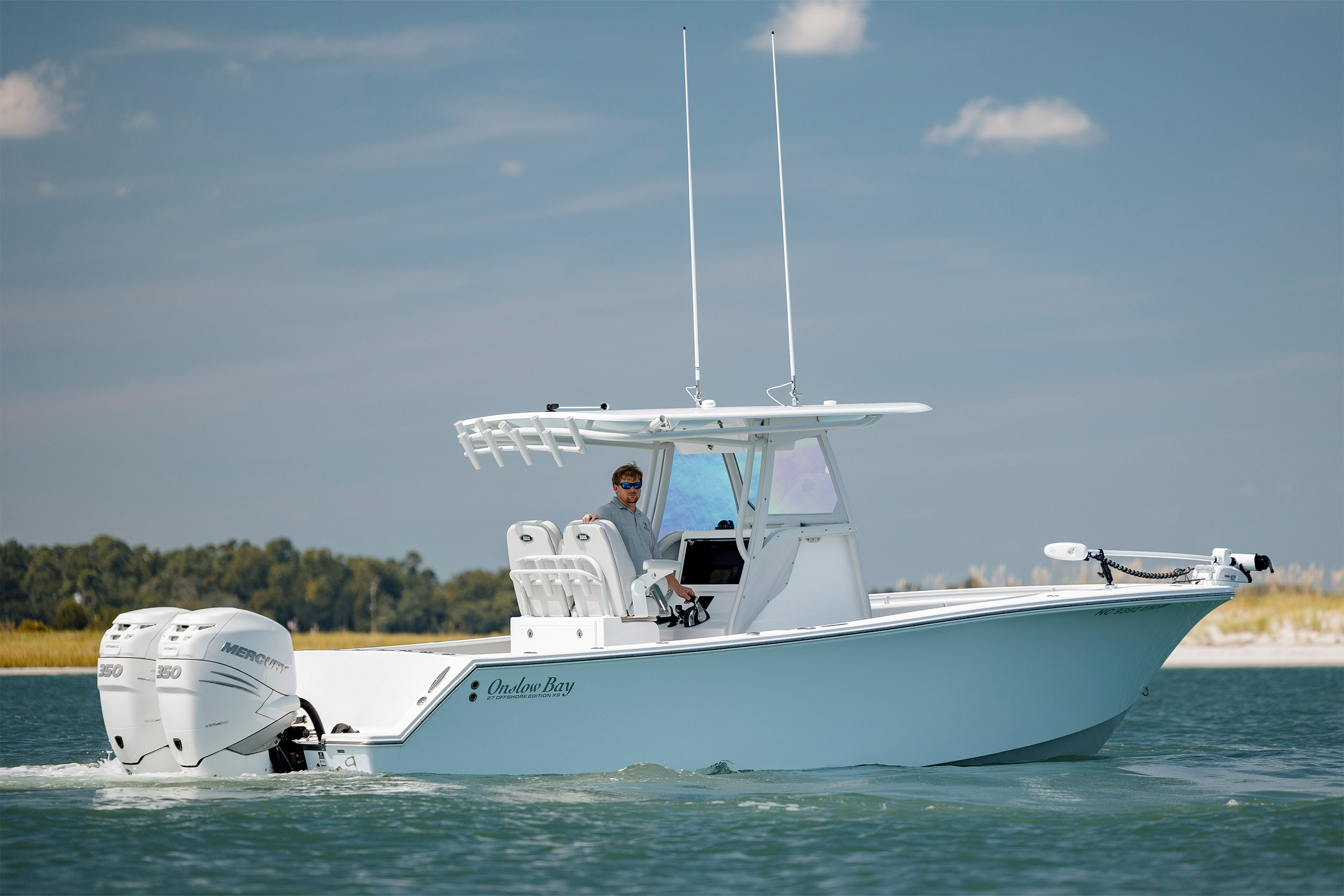

27' OFFSHORE Edition

DESIGNED FOR THE AVID FISHERMAN

The Onslow Bay 27 Offshore Edition, has a centerline length over deck of 26’11” and a huge beam of 9’5″. The waterline length is 23′.

Every part is designed with the avid fisherman in mind. It has a one level deck and a three piece fisherman friendly design with large insulated fish boxes. The 27 Offshore Edition comes standard with a rear 30 gallon livewell, and an optional leaning post livewell combination which contains a 45 gallon round livewell. All livewells have a Carolina blue interior with a clear Plexiglass lid to reduce the stress on live bait.

The bow is large with lots of flare and a 5 degree reverse chine for a dry and very stable ride. The deadrise at the transom is 24 degrees with a 49.5 degree entry for an unbelievable ride in the ocean in any kind of sea conditions.

The 27 Offshore Edition can be customized with seating and a portable head in the console to be family friendly when fishing is not on the agenda. Compare to any other boat in its class and it is apparent that no other boat comes close to matching performance or value.

BUILD YOUR BOAT

Centerline LOA: 26’11”
Waterline Length: 23′
Beam: 9’5″
Deadrise: 24 degrees
Dry Weight: 5000lbs
Draft: 24″
Max HP: 700
Min HP: 300
Max Eng Weight: 1400 lbs
Min Cockpit Depth: 24″
Fuel Capacity: 200 gallons
Max Speed: 72 mph
Rod Holder Layout
Boat Test

STANDARD FEATURES

Deep V hull with a 49.5 degree entry and a 24 degree deadrise at the transom
Console and bilge LED lighting
Under gunnel brush and gaff holders
5 degree reverse chine and large flare for a dry ride
Integrated engine bracket
Full length running surface
All foam core construction (no wood no rot)
All structural bonding done with Plexus® specialty adhesives
All areas except for bilge and fish boxes are foam filled
200 gallon fuel tank with corrosion resistant finish that is foamed and fiberglassed into place
Lenco® electro polished stainless steel extreme duty 12 x 18 trim tabs with indicator lights and auto retract
Insulated 500 quart forward fish box 70”L x 25”W x 18”D
(2) Insulated 140 quart side fish boxes amid ship 39”L x 18”W x 14”D

(2) Insulated 230 quart side fish boxes in the cockpit 55”L x 18”W x 14”D

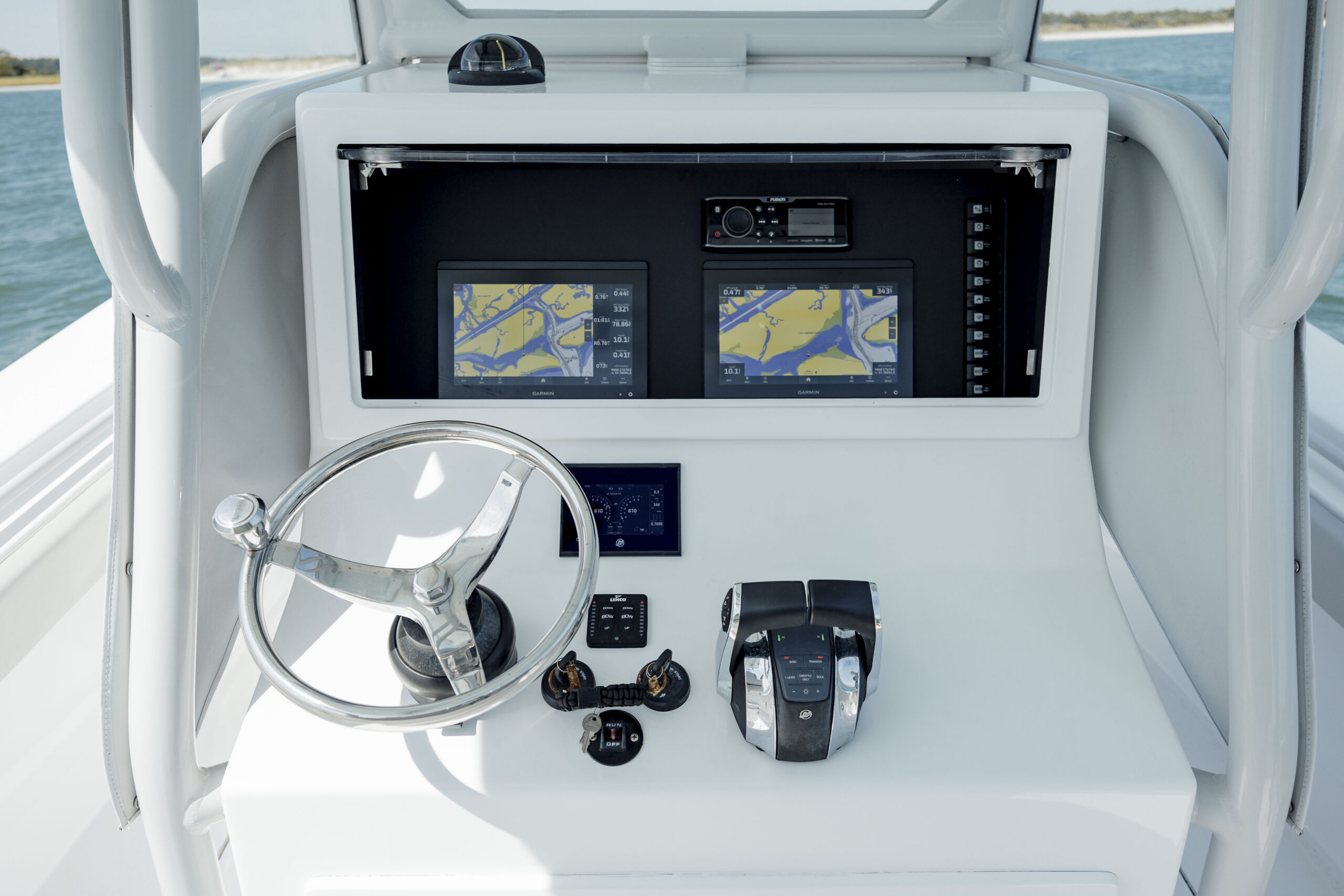

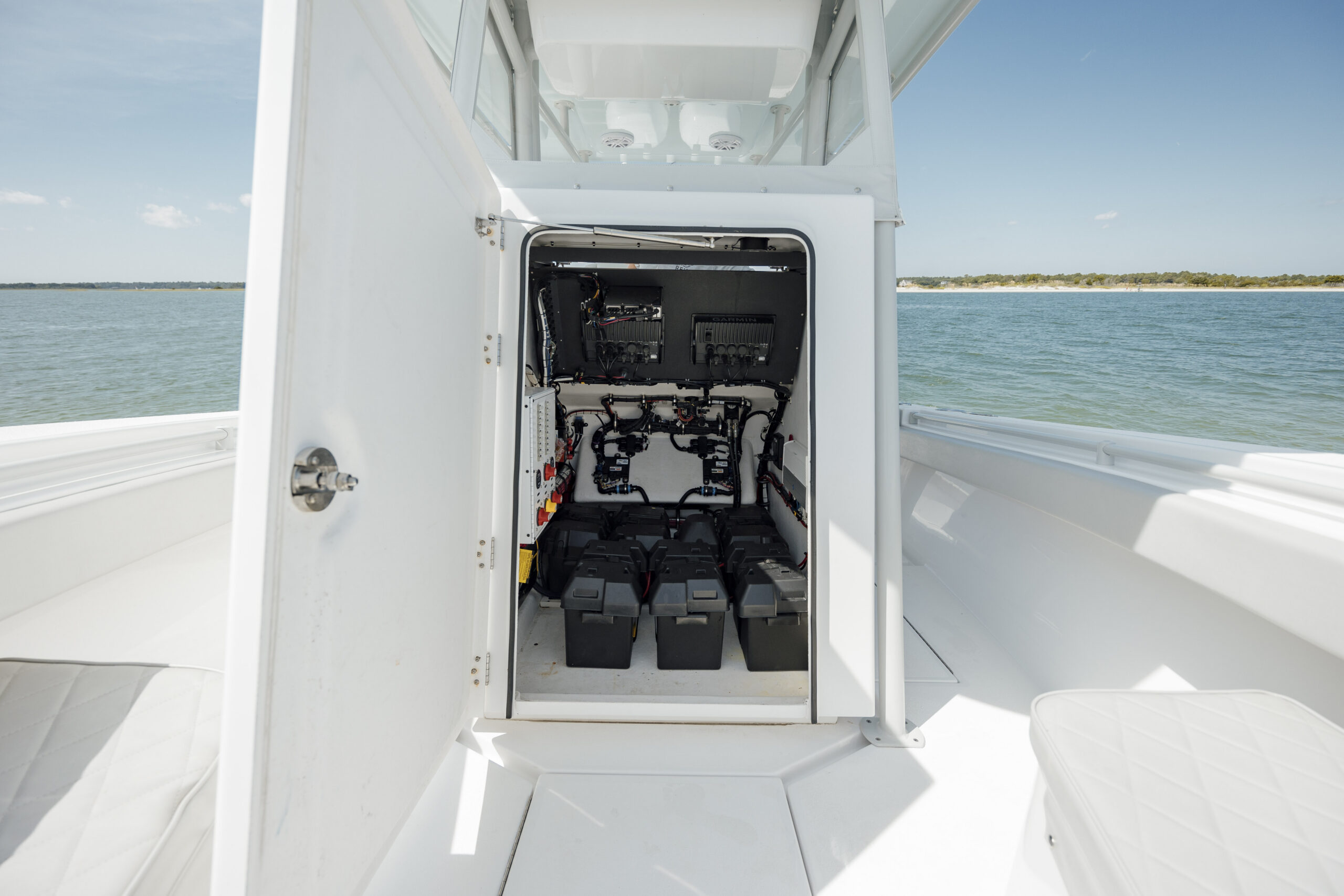

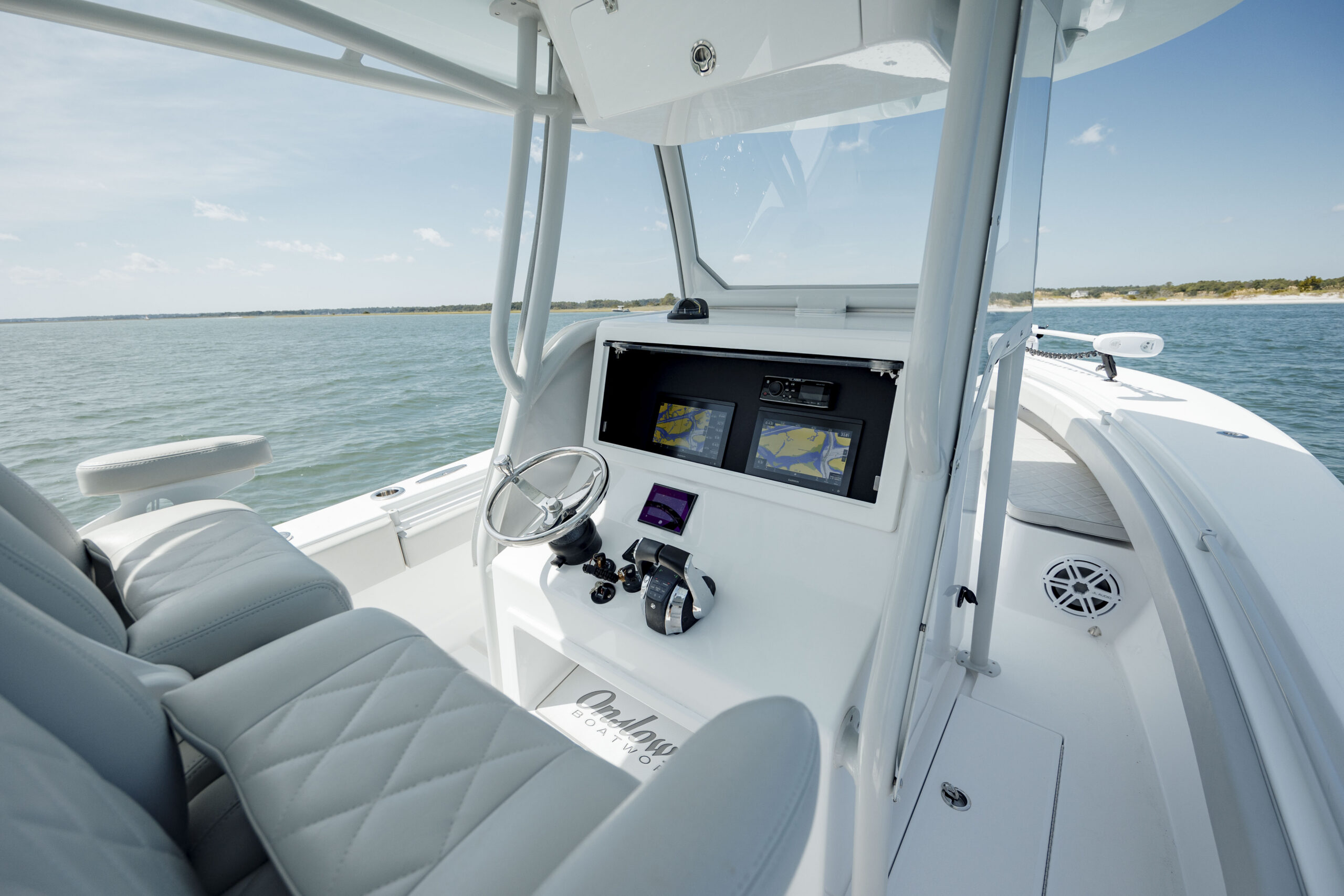

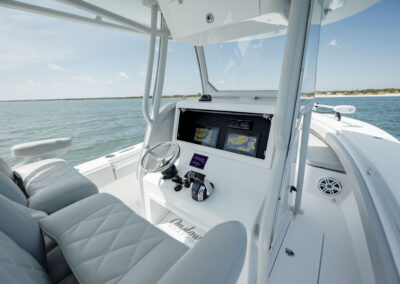

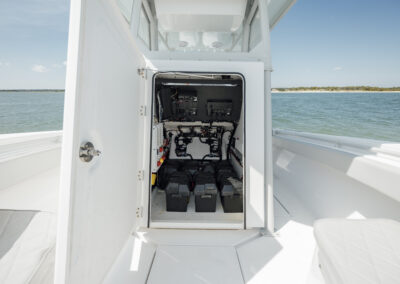

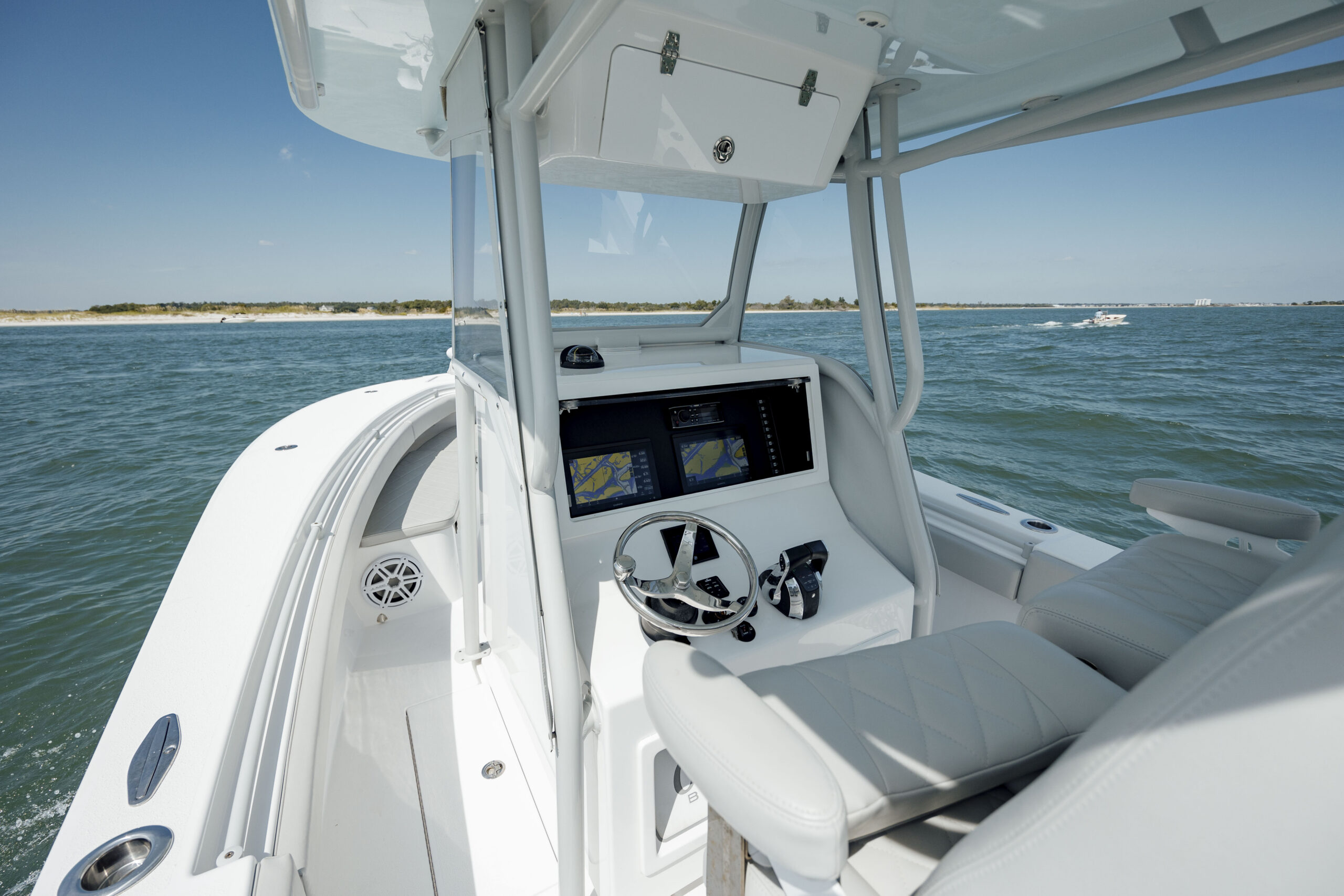

Large front entry fiberglass console with toe kick area and wide electronic area

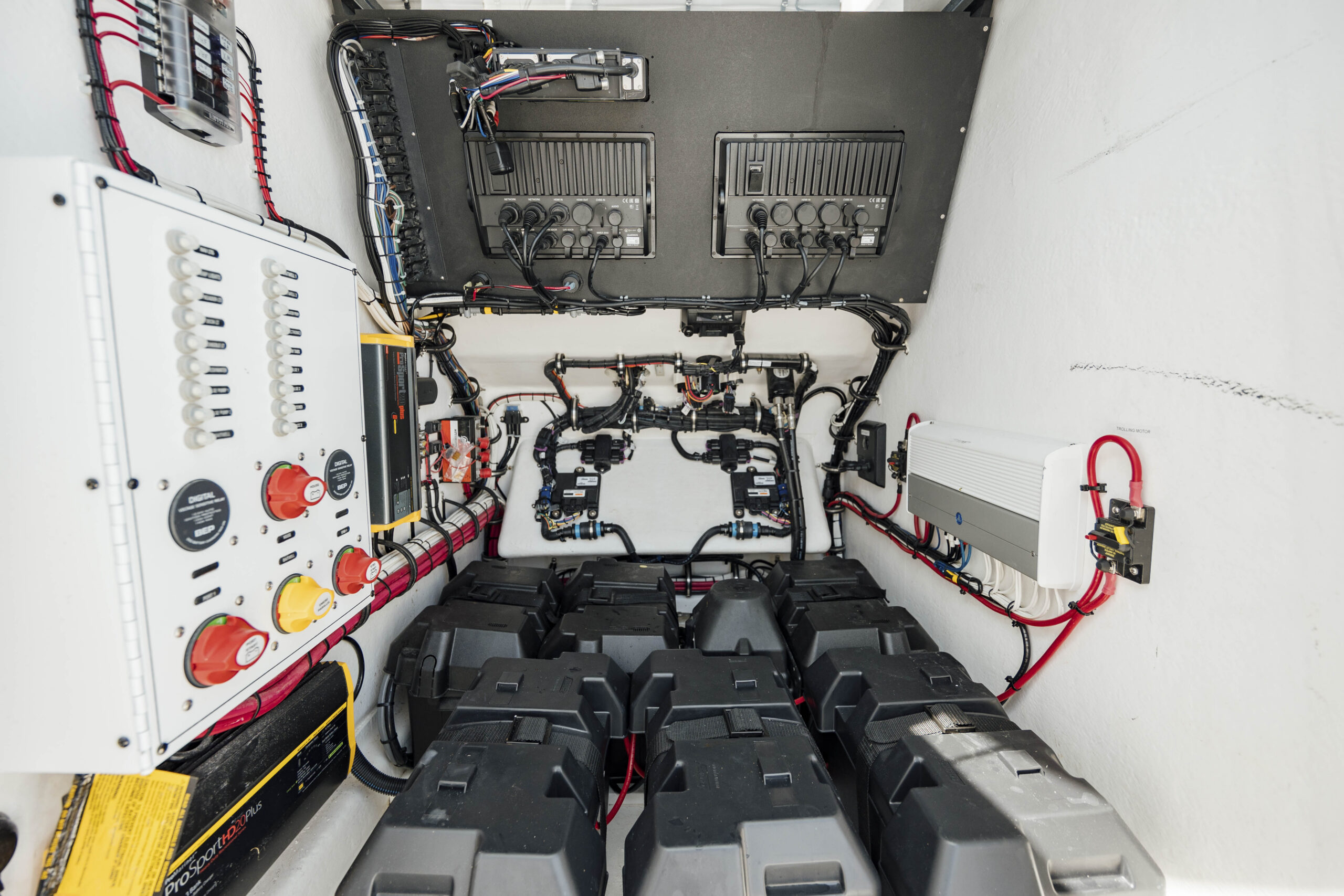

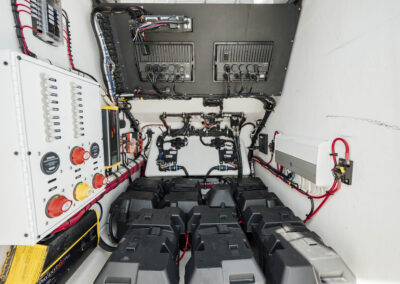

31 series batteries located in console
Uflex® hydraulic steering with tilt helm and heavy duty cylinder
13.5” aluminum steering wheel with speed knob
Dual fuel fills
Ritchie® flush mount compass installed on dash
Starboard flush mount electronics cabinet with clear hideaway door
(2) Rule® 1500 gph bilge pumps with internal float switches
Accon Marine® stainless steel pop up bow light
All hatches use stainless steel piano hinge and Gemlux® 2.5” stainless steel compression latches
All doors are King Starboard®, and back screwed for appearance

Completely self bailing deck with (2) stainless steel deck drains with built in check valves

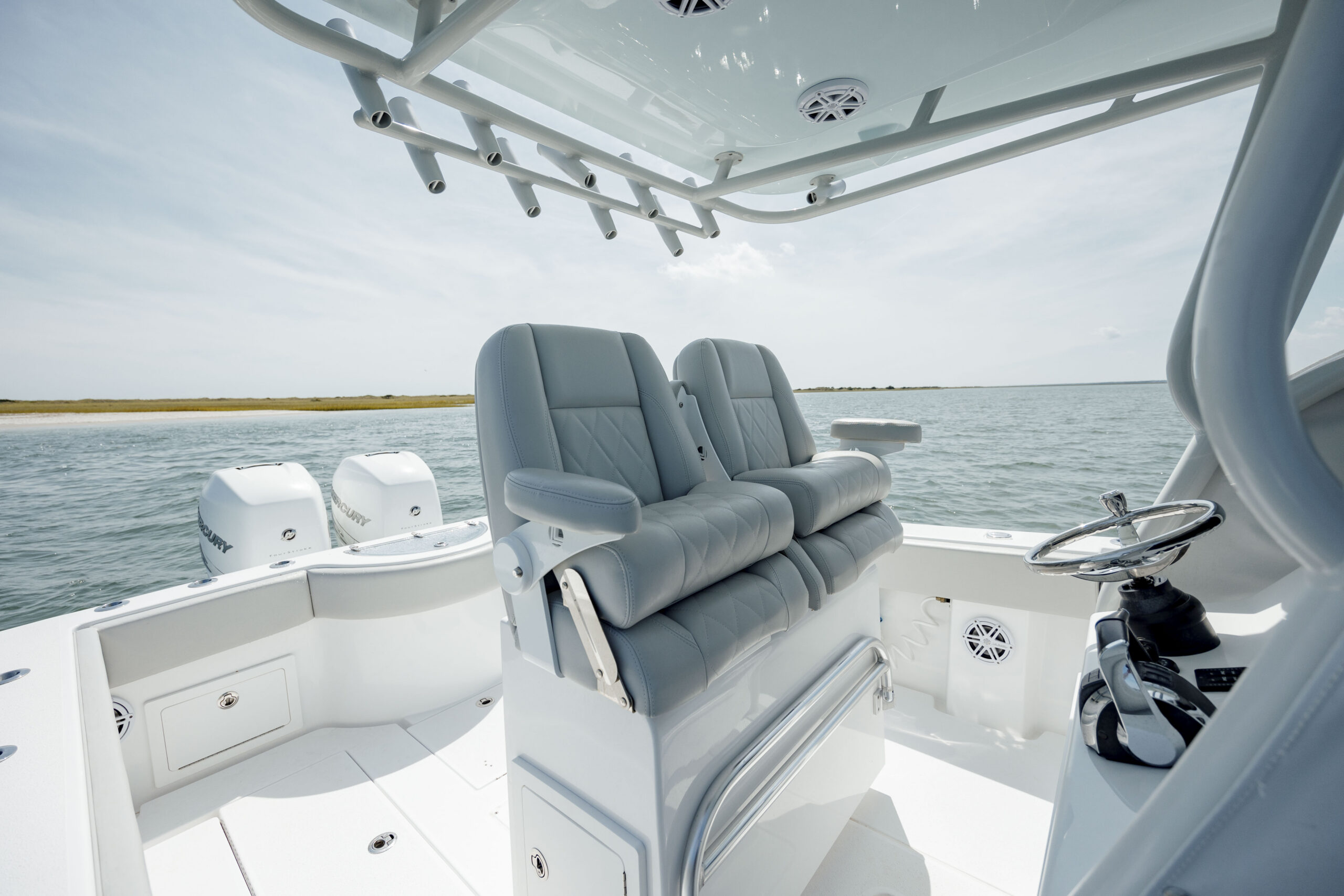

Aluminum leaning post with fiberglass top and backrest with rocket launcher
30 gallon half round transom livewell with Carolina blue interior and clear plexi-glass lid
Recessed aluminum bow rail
Under gunnel LED lighting
Under gunnel power posts for electric downrigger hookups
Saltwater washdow
Anchor locker hatch with anchor holder in bow
Specifically designed for today’s heavier 4 stroke outboards
3 piece hull, cap, and liner “fisherman friendly” design
Gore Marine T-top with canvas frame, oversize tubing, electronics box, LED spreader lights, and outrigger plates
(4) 30 degree gunnel mount Gemlux® rod holders
Boarding ladder
