33' TOURNAMENT Edition

The Ultimate live Bait Fishing Machine

The Onslow Bay 33′ Tournament Edition is designed to handle either twin or triple engine configurations depending on the wants and needs of the customer. It is intended to be the ultimate offshore live bait fishing machine with a standard 45 gallon round live bait well in the transom and the option for either a 45 gallon leaning post live well or a 73 gallon leaning post live well. It features a one level deck with 6 insulated below deck fish/storage boxes. There is a choice of consoles with the first having a front entry door, and the second with a side entry door and cooler seat forward.

The ride of the 33′ is something that has to be experienced to appreciate. We took all of the strengths of the 27′ and incorporated those on the 33′, just in a much larger platform. If you are ready for the next greatest thing in offshore center console boats, call us today to schedule a sea trial. You will not be disappointed.

BUILD YOUR BOAT

Centerline LOA: 32’10”
Waterline Length: 27’6
Beam: 9’11”
Deadrise: 24 degrees
Dry Weight: 7000 lbs
Draft: 28″
Max HP: 1200 Twins or Triples
Min HP: 600
Max Eng Weight: 2100 lbs
Min Cockpit Depth: 24″
Fuel Capacity: 350/300 gallons
Max Speed: TBD
Rod Holder Layout
Boat Test – 300 V8
Boat Test – 400 M

STANDARD FEATURES

All foam core construction (no wood no rot)
Insulated 500 quart forward fish box with 2 lids and divider 70”L x 29”W x 18”D
350 gallon fuel tank with corrosion resistant finish that is foamed and fiberglassed into place. If you have a step down in the console then fuel capacity is 300 gallons
Positive life ventilated step hull with a 48 degree entry and a 24 deadrise at the transom
All structural bonding done with Plexus® specialty adhesives
Insulated 240 quart forward cooler box 22”L x 31”W x 21”D

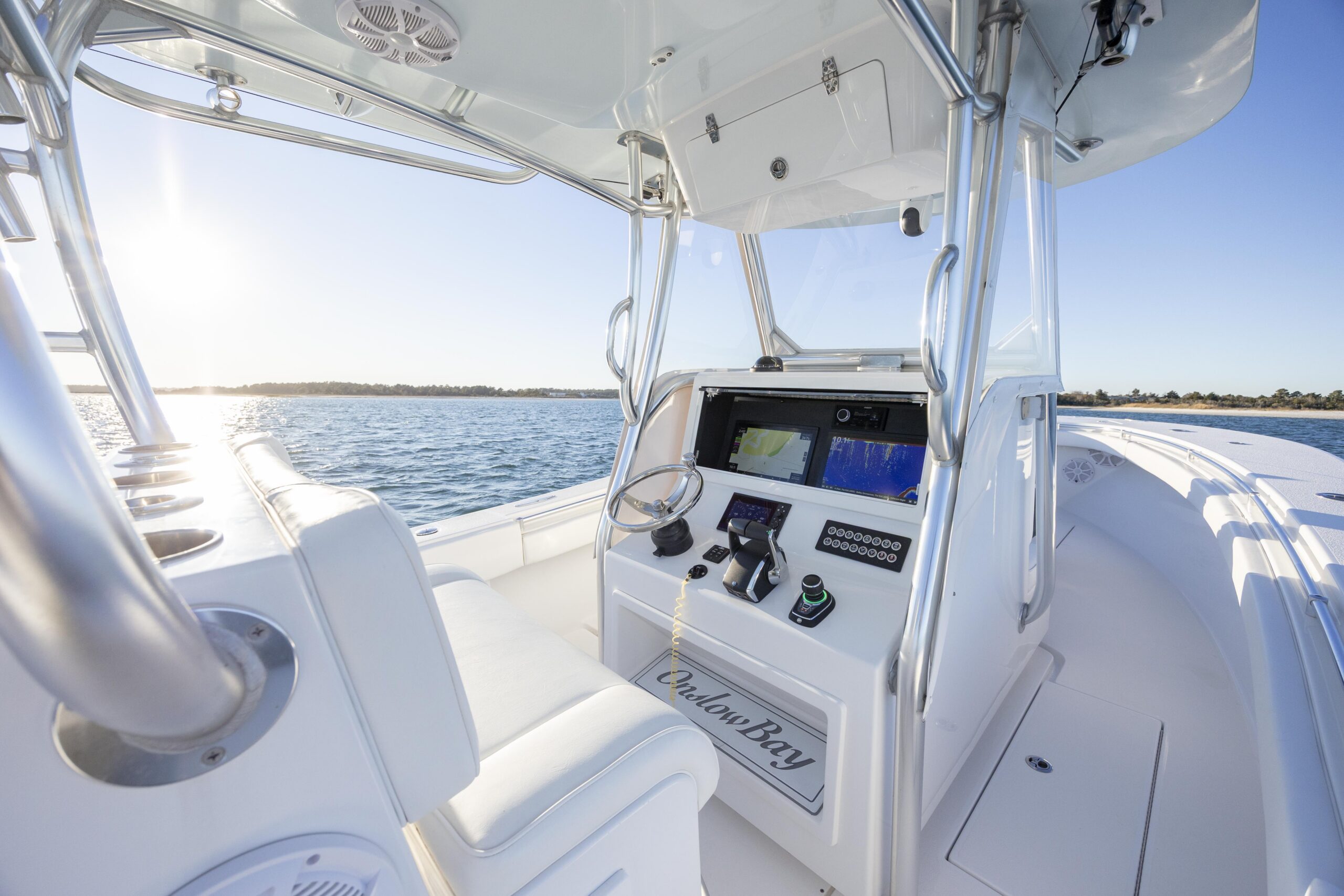

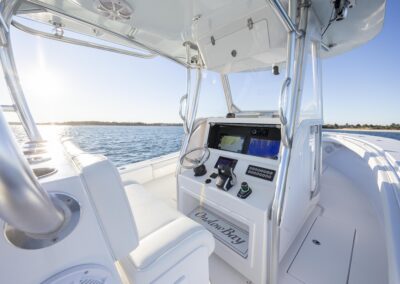

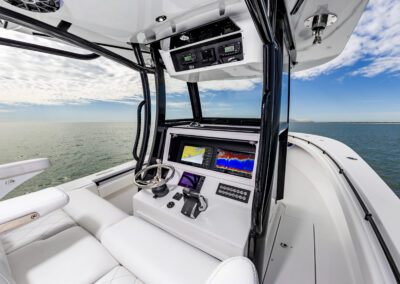

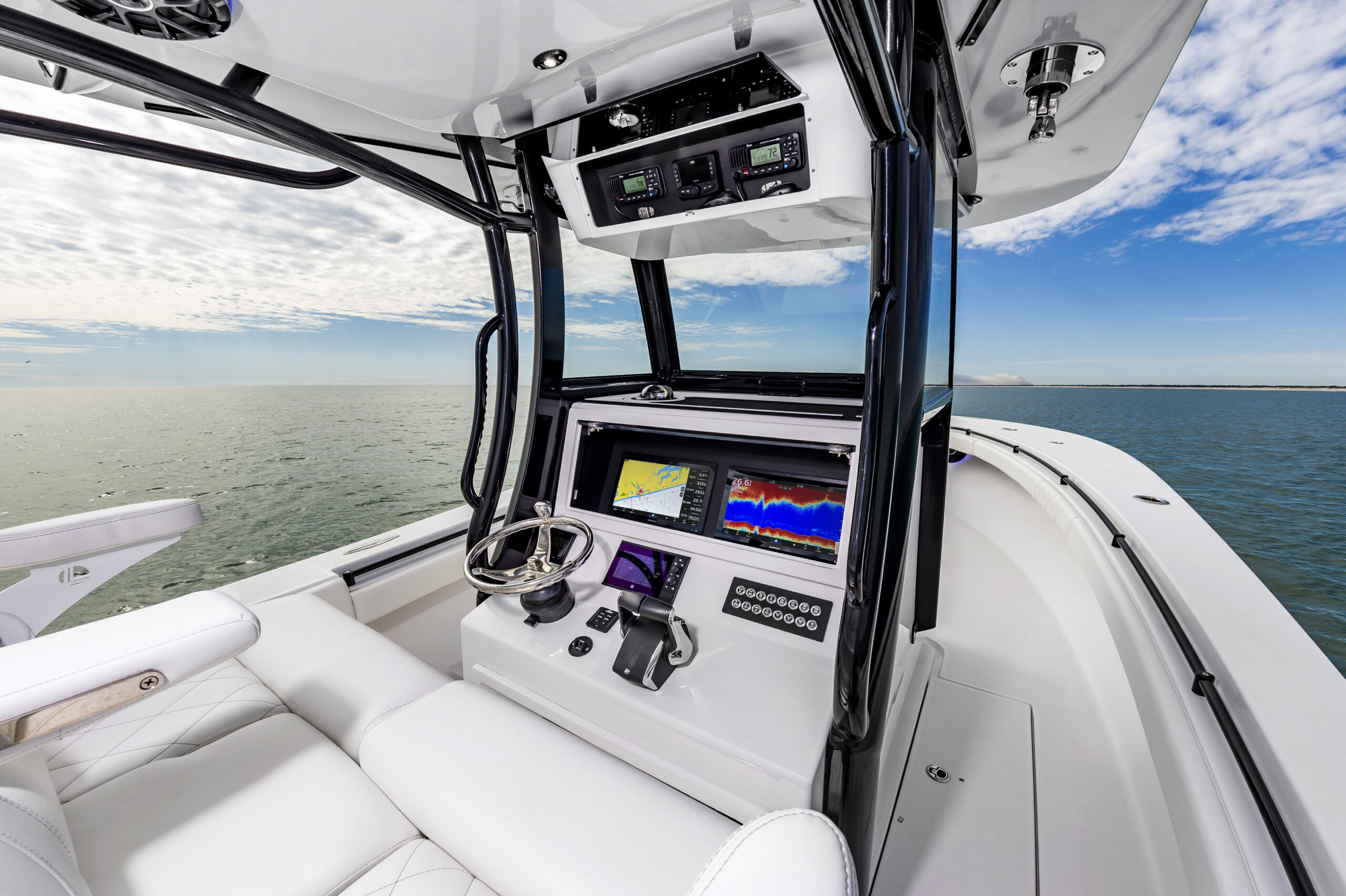

Large Console with 125 qt cooler seat, side entry and Integrated Footrest
7 degree reverse chine and large flare for a dry ride
Vinyl ester resin skin coat in hull to prevent blistering
(2) Insulated 230 quart side fish boxes amid ship 55”L x 18”W x 14”D

Aluminum T-top with LED spreader lights, life jacket holder, rod holders, and electronics box
Full length running surface
All areas except for bilge and fish boxes are foam filled
(2) Insulated 230 quart side fish boxes in the cockpit 55”L x 18”W x 14”D
(4) 30 degree gunnel mount Gemlux® rod holders
Lenco® electro polished stainless steel extreme duty 12 x 18 trim tabs with indicator lights and auto retract
Ritchie® flush mount compass installed on dash
All hatches use stainless steel piano hinge and Gemlux® 2.5” stainless steel compression latches
Boarding ladder
Uflex® hydraulic steering with tilt helm and heavy duty cylinder

(2) Rule® 1500 gph bilge pumps with internal float switches
All doors are King Starboard®, back screwed for appearance, and use Gemlux® stainless steel slam latches
Recessed aluminum bow rail
Dual fuel fills
Accon Marine® stainless steel pop up bow light
Completely self bailing deck with (2) stainless steel deck drains with built in check valves
One level deck with gutter system for drainage
Starboard flush mount electronics cabinet with clear hideaway door
(6) Accon Marine® 8” pop up stainless steel cleats
45 gallon round transom livewell with Carolina blue interior, clear plexi-glass lid and (2) 800 gph Shurflo® Tournament series pumps
3 piece hull, cap, and liner “fisherman friendly” design
